Dangerous Machines (Regulation) Rules, 2007
In exercise of the powers conferred by sub-section (1) of Section 36 of the Dangerous Machines (Regulation) Act, 1983 (35 of 1983), and in supersession of the Dangerous Machines (Regulation) Rules, 1984, except as respects things done or omitted to be done before such supersession, the Central Government hereby makes the following rules, namely:
Section 1. Short title and commencement
(1) These rules may be called the Dangerous Machines (Regulation) Rules, 2007.
(2) They shall come into force on such date as the Central Government may, by notification in the Official Gazette, specify, and different dates may be specified for different rules.
Section 2. Definitions
In these rules, unless the context otherwise requires,
(a) Act means the Dangerous Machines (Regulation) Act, 1983 (35 of 1983);
(b) Form means a form appended to the First Schedule to the rules;
(c) Schedule means a Schedule appended to these rules.
Section 3. Form of licence issued under Section 9
(1) Every licence issued to a person authorizing him to manufacture, or to commence or to carry on business as the manufacturer of any dangerous machine shall be issued in Form I.
(2) There shall be issued for each category of dangerous machine, a separate licence and every such licence shall be issued in Form I.
(3) Every licence to commence or carry on business as a dealer of a dangerous machine shall be issued in Form II.
(4) Every licence referred to in sub-rule (2) shall be valid for dealing with the types or models of dangerous machines specified in the licence.
Section 4. Standards and specifications of power threshers, power operated chaff cutter and sugarcane crushers
Every licence issued under Rule 3 shall ensure that the power thresher, power operated chaff cutter and sugarcane crushers manufactured by him/her complies with the standards and specifications laid down in the Second Schedule.
Section 5. Modifications of existing dangerous machines how to be made
(1) Every person who has, immediately before the commencement of the Act, in his/her custody or control any power thresher, power operated chaff cutter and sugarcane crusher which does not comply, in all respects, with the provisions of the Act, and the rules and orders made thereunder, shall get it modified so as to ensure that the feeding system conforms to the specifications laid down in the Third Schedule.
(2) The transmission system of every power thresher, power operated chaff cutter and sugarcane crusher shall be provided with suitable guards as specified in the Third Schedule.
Schedule 1
[See Rule 3(1) and (3)]
Licence No. ..
Whereas M/s. of has/have (give full address)
applied for a licence for commencement of/carrying on business as a manufacturer of
(here specify which dangerous machine)
And whereas the Controller is satisfied that the condition specified in clause (a) of sub-section (4) of Section 9 or, as the case may be, sub-section (4) of Section 9 has been complied with.
Now, therefore, in exercise of the powers, conferred by Section 9 of the Act, licence is granted/renewed to M/s. . for a period of five years to commence/carry on business as a manufacturer of the:
1.
2.
3.
(Give name of machine [power thresher, power operated chaff cutter, power operated sugarcane crusher] and trade name with brief description and overall dimensions)
This licence is issued subject to the following conditions, namely:
(1) The manufacturer shall ensure that the machine and every part thereof complies with the standards specified by Rule 4 of the Dangerous Machine (Regulation)(Amendment) Rules, 2007.
(2) Without prejudice to the generality of condition number (1) above, the manufacturer shall ensure that the following parts are secured by safeguard of substantial construction:
(a) the primemover and every part thereof;
(b) the transmission machinery and every part thereof; and
(c) every other dangerous part such as rollers, blowers, elevators, knife blades and the like.
(3) The manufacturer shall clearly and legibly provide the machine with danger signals indicating the point beyond which no limb shall be inserted for the purpose of feeding the machine or for any other purpose while the machine is in operation.
(4) The manufacturer shall ensure that the following particulars are legibly and conspicuously marked or inscribed on every dangerous machine by such method as would make it indelible, namely:
(a) the direction of the rotation and the number of rotations per minute;
(b) its power requirements; and
(c) the name and correct address of the manufacturer, the year of manufacture and the date, number and other particulars of the licence of the manufacturer.
(5) Every manufacturer shall supply along with each dangerous machine a manual containing general instructions regarding the operation of such machine, in Hindi and regional languages.
(6) Before, transferring the possession of the machine whether by sale, lease, hire or otherwise, the manufacturer shall deliver to the person acquiring the machine a declaration to the effect that the machine conforms to the standards laid down by or under this Act and also complies, in all respects, with the provisions of the Act and rules and orders made thereunder.
(7) Failure to comply with the conditions specified above or of any provision of the Act or rule or order made thereunder will make this licence liable to suspension or cancellation as provided in Section 10.
[Nota Bene. All references to the Act or any section thereof are references to the Dangerous Machines (Regulation) Act, 1983 (35 of 1983) or the relevant section thereof]
Granted this day of .
| Place: |
Designation |
| Date: |
(Seal) |
[See Rule 3(3)]
Licence No.
Whereas M/s of (here give full address) has/have applied for a licence for commencement of/carrying on business as a dealer of ..
(here specify which dangerous machine)
And whereas the Controller is satisfied that the applicant proposes to commence/carry on business in .
(specify which machine)
which conform to the standards laid down by or under the Dangerous Machines (Regulation) Act, 1983 (35 of 1983).
Now, therefore, in exercise of the power conferred by sub-section (4) of Section 9, licence is granted to M/s .. for a period of five years to commence/carry on business as a dealer of:
| Serial Number |
Name of the machine |
Make/model and brief description |
Horsepower/kilowatt requirement of the machine |
| (1) (2) (3) |
(Specify, types of threshers, power operated chaff cutter and power operated sugarcane crusher or other dangerous machine)
This licence is issued subject to the following conditions, namely:
(1) The dealer shall deal only in machines of a manufacturer licenced under the Act.
(2) Before transferring the possession of any machine whether by sale, lease, hire or otherwise, the dealer shall deliver to the person acquiring the possession of such machine, a declaration to the effect that the machine conforms to the standards laid down by or under this Act and also complies with, in all respects, the provisions of this Act and the rules and orders made thereunder.
(3) Failure to comply with the conditions specified above or of any provision of the Act or rule or order made thereunder will make this licence liable to suspension/cancellation as provided in Section 10.
[Nota Bene. All references to the Act or any section thereof are references to the Dangerous Machines (Regulation) Act, 1983 (35 of 1983) or the relevant section thereof].
Granted this . day of .
| Place: |
Designation |
| Date: |
(Seal) |
Schedule 2
(See Rule 4)
1. A power thresher shall comply with the following Indian Standards as may be relevant:
IS 9020:2002 (Power Threshers Safety Requirements)
2. A power operated chaff cutter shall comply with the requirements of the following Indian Standards:
IS 15542: 2005 (Power Operated Chaff Cutter Safety requirements) IS 11459: 1985 (Specification for power operated Chaff Cutter)
3. A power operated sugarcane crusher shall comply with the requirements of the following Indian Standards:
IS 15561: 2005 (Sugarcane Crushers Safety requirements)
IS 1973: 1999 (Sugarcane Crusher Specifications (third revision)
Schedule 3
(See Rule 5)
1. Every power thresher, power operated chaff cutter and power operated sugarcane crusher referred to in Rule 5 shall be so modified as to ensure that the feeding system conforms to Section 7 as the case may be of IS 9020:2002, Section 7.2, 7.3 of IS 15542: 2005 and Section 5.1, 5.1.1, 5.1.2, and 5.2 IS 15561: 2005 of the Indian Standards respectively.
2. The transmission system shall be provided with suitable guards as specified in Section 6 of Indian Standards No. I.S. 9020 of 2002, Section 8 of Indian Standards No. IS 15542: 2005 and Section 6 of IS 15561: 2005 respectively.

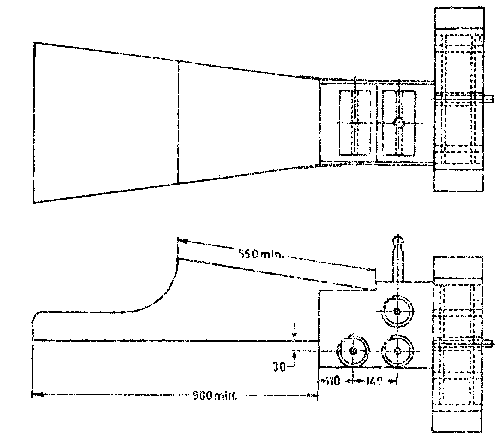

3. The recommended dimensions of the chute for Hammer-mill, Drummy and Syndicator type threshers are given in Table 1 below.
4. The recommended dimensions of chute for spike tooth cylinder type threshers are given in Table 2 below. The recommended dimensions of the chute for power operated chaff cutter and power operated sugarcane crusher is given in Table 3 and Table 4 below respectively. The feeding hopper of the power thresher shall conform to Section A-2 of ANNEX A of IS 9020:2002. The positive feed rollers with conveyor or chute system used on chaff-cutter type power thresher shall conform to Section A-3 of ANNEX A of IS 9020:2002. The conveyor feeding system used with spike tooth or rasp-bar type power thresher of power rating of 5.5 kW or higher shall conform to Section A-4 of ANNEX A of IS 9020:2002. The recommended dimension of conveyor system for power operated chaff cutter is given in Table-5.
TABLE 1
| Sl. No. |
Size of the prime mover for thresher |
A |
C* |
E |
F |
| (1) |
(2) |
(3) |
(4) |
(5) |
(6) |
| kW (HP) |
mm |
mm |
mm |
mm |
|
| (i) |
3.7(5) |
500 |
200 |
50 |
125 |
| (ii) |
5.5 (7.5) |
550 |
200 |
60 |
175 |
| (iii) |
7.5(10) |
600 |
220 |
60 |
190 |
| (iv) |
11(15) and above |
650 |
220 |
60 |
200 |
*For syndicator type thresher the dimension should be 230 mm
TABLE 2
| Sl. No. |
Size of the prime mover for thresher |
A |
C* |
E |
F |
| (1) |
(2) |
(3) |
(4) |
(5) |
(6) |
| kW (HP) |
mm |
mm |
mm |
mm |
|
| (i) |
3.7(5) |
440 |
350 |
60 |
190 |
| (ii) |
5.5 (7.5) |
480 |
400 |
60 |
190 |
| (iii) |
7.5(10) |
540 |
480 |
60 |
190 |
| (iv) |
11(15) and above |
590 |
530 |
60 |
210 |
Note. A, C, E and F refer to the dimensions as shown in the figure
.png)
TABLE 3
| Sl. No. |
Description |
Dimension (mm) |
| (1) |
(2) |
(3) |
| (i) |
Minimum length of chute |
900 |
| (ii) |
Minimum thickness of sheet metal of chute |
1.6 |
| (iii) |
Minimum length of chute cover |
450 |
| (iv) |
Height of chute from ground level |
750 to 1100 |
TABLE 4
| Sl. No. |
Description |
Dimension (mm) |
| (1) |
(2) |
(3) |
| (i) |
Minimum thickness of Sheet Metal of feed plate/chute |
1.6 |
| (ii) |
Maximum opening for feeding the cane in feed plate/chute |
60 |
| (iii) |
The feed plate or feed chute shall be covered on front for a minimum distance of |
600 |
TABLE 5
| Sl. No. |
Description |
Dimension (mm) |
| (1) |
(2) |
(3) |

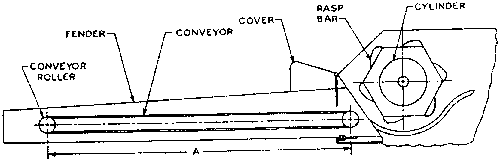

| (i) |
Minimum length of conveyer cover |
1200 |
| (ii) |
Minimum length of covered conveyer cover |
450 |
| (iii) |
Minimum thickness of sheet metal for cover |
1.6 |
| (iv) |

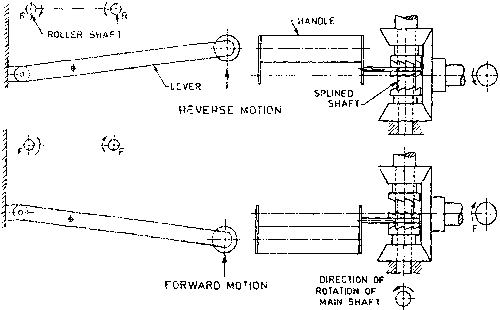

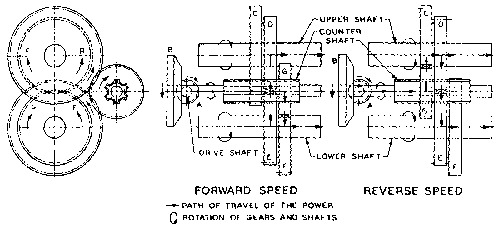

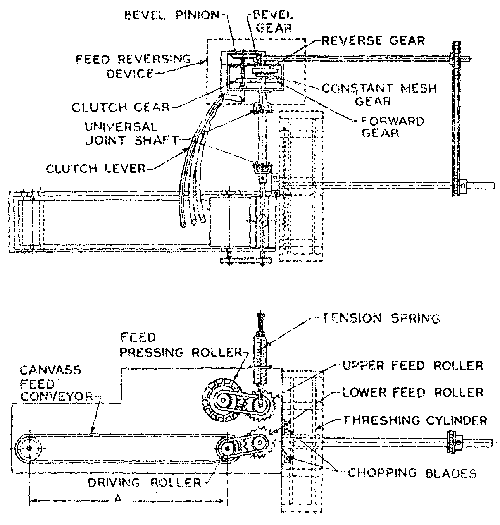

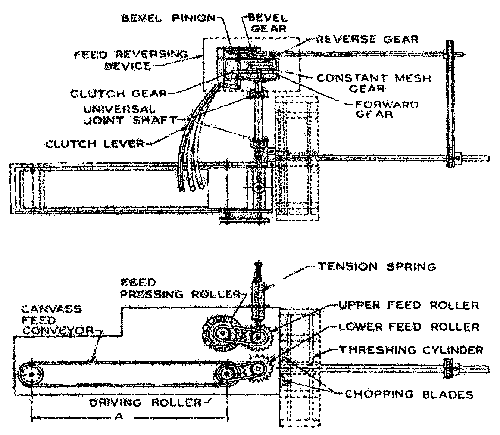

Feed reversing mechanism |

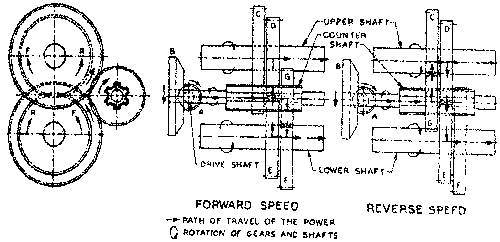

Shall conform to the requirements in ANNEX-A of IS 15542:2005 |
| (v) |
Minimum thickness of MS Sheet (IS: 2062) for guard of blower, if provided |
1.6 |
ANNEXURE A
(Clauses 4.2 and 7.1)
REQUIREMENTS FOR FEEDING SYSTEMS OF POWER THRESHERS
A-1 FEEDING CHUTE
A-1.1 Material
Mild steel sheet (see IS 2062) shall be used in the manufacture of the feeding chute. The thickness of sheet shall not be less than 1.6 mm.
A-1.2 Shape

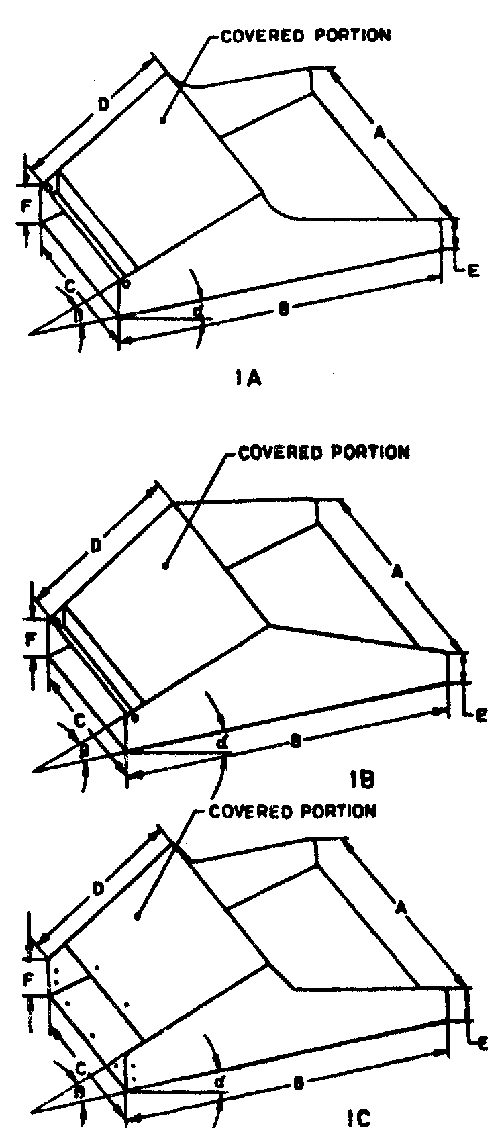

The shape of the chute shall be as shown in Fig. 1.
A-1.3 Dimensions
A-1.3.1 The total length of chute, length of covered portion (see B and D in Fig. 1) shall be 900 mm, min and 450 mm, min respectively. The angle of lift of covered portion (see Fig. 1) shall be between 10 to 30 . However, the length of the covered portion of chute for chaff-cutter type thresher shall not be less than 550 mm.
A-1.3.2 Other dimensions, when read in conjunction with Fig. 1. for feeding chute of hammer mill type, drummy type and chaff-cutter type threshers of various power ratings are given in Table 3 for guidance.
TABLE 3
| Sl. No. |
Size of the Prime Mover forthe Thresher, kW |
Amm |
Cmm |
Emm |
Fmm |
| (1) |
(2) |
(3) |
(4) |
(5) |
(6) |
| (i) |
3.7 |
500 |
200 |
50 |
125 |
| (ii) |
5.5 |
550 |
200 |
60 |
175 |
| (iii) |
7.5 |
600 |
220 |
60 |
190 |
| (iv) |
II and above |
650 |
220 |
60 |
200 |
A-1.3.3 Other dimensions, when read in conjunction with Fig. I for chute of spike-tooth cylinder type thresher of various power ratings are given in Table 4 for guidance.
.png)
COVERED PORTION
AD
BE
C
TABLE 4
(Clause A-1.3.3)
| Sl. No. |
Size of the Prime Mover for Thresher kW |
Amm |
Cmm |
Emm |
Fmm |
| (1) |
(2) |
(3) |
(4) |
(5) |
(6) |
| (i) |
3.7 |
440 |
350 |
60 |
190 |
| (ii) |
5.5 |
480 |
400 |
60 |
190 |
| (iii) |
7.5 |
540 |
480 |
60 |
190 |
| (iv) |
11 and above |
590 |
530 |
60 |
210 |
A-1.4 Other Requirements
A-1.4.1 To facilitate easy and smooth feeding of the crop during operation, the feeding chute shall be properly mounted on the thresher. In the mounted position angle (see Fig. 1) shall be kept as under:
| (a) |
For hammer-mill and drummy-type threshers |
10 to 15 |
| (b) |
For chaff-cutter type threshers |
0 to 5 |
| (c) |
For spike tooth type threshers |
10 to 15 |
A-1.4.2 No sharp edges shall be provided on the feeding chute.
A-1.4.3 The covered portion of the chute shall be rigidly attached and shall not be able to be detached without cutting.
A-1.4.4 The feeding chute shall be so fixed with the thresher that it is not possible to remove it easily.
A-2 FEEDING HOPPER
A-2.1 Material
A-2.1.1 Hopper Mild steel sheet (see IS 2062) shall be used. The thickness of the sheet shall not be less than 1.6 mm.
A-2.1.2 Star Wheels Cast iron (see IS 210) shall be used.
A-2.1.3 Star Wheel Shaft Mild steel rod (see IS 2062) shall be used.
A-2.2 Shape

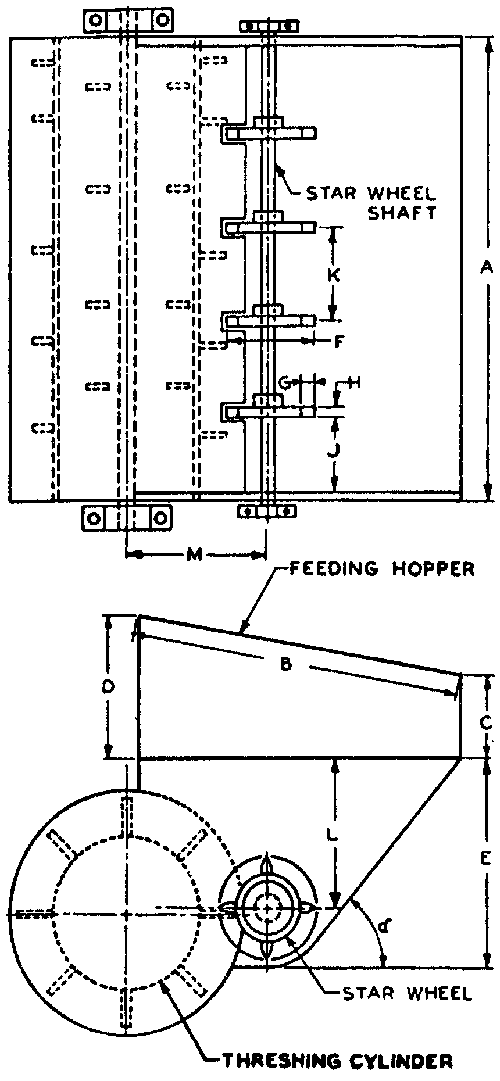

The shape of the hopper unit shall be as shown in Fig. 2.
A-2.3 Dimensions
A-2.3.1 The dimension A in Fig. 2 shall be 400 mm more than the length of the threshing cylinder and shall be declared by the manufacturer.
A-2.3.2 The thickness of sheet for the hopper shall be 1.6 mm.
A-2.3.3 The dimensions of the hopper and star wheels when read in conjunction with Fig. 2 shall be as given in Table 5.
.png)
| STAR WHEEL SHAFT |
STAR WHEEL |
||
| FEEDING HOPPER |
THRESHING CYLINDER |
||
| A |
D |
G |
L |
| B |
E |
H |
M |
| C |
F |
K |
TABLE 5
(Clause A-2.3.3)
| Sl. No. |
Size of the Prime Mover for ThresherkW |
BM in mm |
CM in mm |
DM in mm |
EM in mm |
F mm |
G mm |
H mm |
5deg |
| (1) |
(2) |
(3) |
(4) |
(5) |
(6) |
(7) |
(8) |
(9) |
(10) |
| (i) |
7.5 |
900 |
180 |
340 |
75 |
280 |
45 |
20 |
50 |
| (ii) |
11 |
900 |
200 |
370 |
500 |
280 |
45 |
20 |
50 |
| (iii) |
15 |
925 |
220 |
400 |
535 |
280 |
45 |
20 |
50 |
| (iv) |
18.7 and above |
950 |
240 |
430 |
565 |
280 |
45 |
20 |
50 |
| Note. Hopper feeding system is normally used with the threshers of 7.5 kW or more power ratings. |
|||||||||
A-2.3.4 Mounting Dimensions
A-2.3.4.1 The feed hopper shall be built as an integral part of the thresher.
A-2.3.4.2 The location of the star wheels in relation to hopper sides (see J in Fig. 2) shall be 75 mm. The centre to centre distance of two star wheels (see K in Fig. 2) shall be 220 mm.
A-2.3.4.3 The fixation of star wheel shaft in hopper (see L in Fig. 2) and fixation of star wheel in relation to centre of threshing cylinder (see M in Fig. 2) shall be 350 mm and 450 mm respectively.
A-2.4 Other Requirements
A-2.4.1 The hopper shall be attached on the top of the threshing cylinder or on the side. If it is attached on the sides a feed regulating shaft shall be provided and it shall be operated at a speed of 25 to 55 rpm.
A-2.4.2 No sharp edges shall be provided in hopper or on star wheels.
A-2.4.3 The casting shall be smooth and shall not be porous.
A-2.5 Other types of feeding mechanisms may also be used with feeding hoppers. A typical shape of the hopper unit with feed roller type feeding mechanism is shown in Fig. 3. The material and dimensional requirement of feed roller type feeding mechanism are given in A-2.5.1 and A-2.5.2.
.png)
FEEDING HOPPER
FEED ROLLER
| A |
F |
| B |
G |
| C |
J |
| D |
K |
| E |
L |

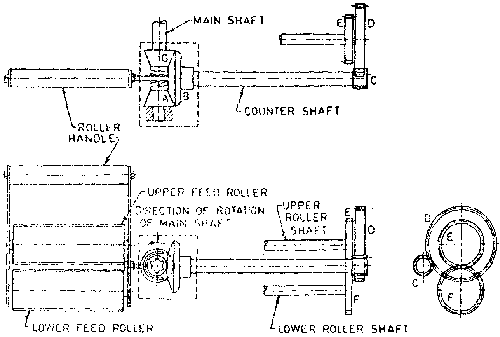

A-2.5.1 Material
The material for the construction of hopper, feed rollers and feed roller shaft shall be of mild steel (see IS 2062).
A.2.5.2 Dimensions

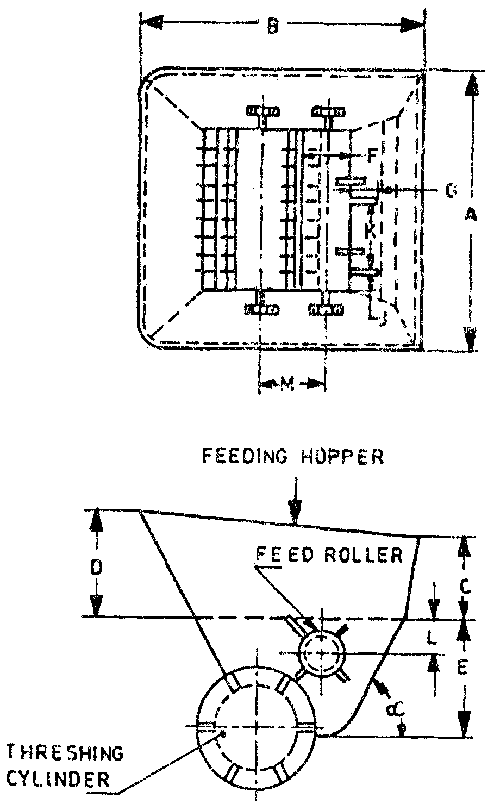

A-2.5.2.1 The dimensions A in Fig. 2-A shall be 400 mm more than the length of the threshing cylinder and shall be declared by the manufacturer.
A-2.5.2.2 The thickness of sheet for hopper shall be 1.6 mm, Min.
A-2.5.2.3 The dimensions of the hopper and feed rollers when read in conjunction with Fig. 3 shall be as given in Table 6.
TABLE 6
(Clause A-2.5.2.3)
| Sl. No. |
Size of the Prime Mover for Thresher, kW |
BM in mm |
CM in mm |
DM in mm |
EM in mm |
F mm |
G mm |
H mm |
5deg |
| (1) |
(2) |
(3) |
(4) |
(5) |
(6) |
(7) |
(8) |
(9) |
(10) |
| (i) |
15 |
740 |
150 |
545 |
560 |
300 |
100 |
15 |
55 |
| (ii) |
26.3 |
900 |
200 |
560 |
570 |
300 |
100 |
15 |
55 |
| (iii) |
37.5 |
925 |
230 |
570 |
580 |
300 |
100 |
15 |
55 |
| Note. Hopper feeding system with feed roller type feeding mechanism is normally used with thresher of 15 kW or more power ratings. |
|||||||||
A-2.5.2.4 The feed hopper shall be built as an integral part of the thresher.
A-2.5.2.5 The location of the feed rollers in relation to hopper sides (see J in Fig. 3) shall be 90 mm. The centre to centre distance of two feed roller rods (see K in Fig. 3) shall be 355 mm.
A-2.5.2.6 The fixation of feed roller in hopper (see L in Fig. 3) and fixation of feed roller in relation to centre of threshing cylinder (see M in Fig. 3) shall be 125 mm and 450 mm respectively.
A-2.5.2.7 No sharp edges shall be provided in hopper or on feed rollers.
A-3 POSITIVE FEED ROLLERS WITH CONVEYOR OR CHUTE
A-3.0 The system is used on a chaff-cutter type thresher. It comprises a feed pressing roller, two corrugated feed rollers and a feeding chute or conveyor with power transmission system. For this type of threshers with power ratings, of 15 kW or more, a feed reversing mechanism is recommended. It comprises a gear box, a clutch lever and two joining shafts with universal joints (see Fig. 4). In some threshers fast and loose pulleys to cut-off the drive to the upper and lower feed rollers are also used. In the feeding system with feed reversing mechanism, if the hand of an operator gets entrapped, the clutch lever is pressed by his hand or shoulder and the drive to the feed roller is cut-off in the neutral position or the direction of the upper and lower feed rollers is reversed.
A-3.1 Material
A-3.1.1 Chute The chute shall be made of mild steel sheet (see IS 2062) having thickness of not less than 1.6 mm.
A-3.1.2 Conveyor Canvass or rubber [see IS 1891 (Part 1)] or steel slats (see IS 2062).
A-3.1.3 Driving Roller Cast iron (see IS 210).
A-3.1.4 Pressing Roller Cast iron (see IS 210).
A-3.1.5 Feed Rollers Cast iron (see IS 210).
A-3.1.6 Tension Spring Spring steel [see IS 4454 (Part 1)].
A-3.1.7 Clutch Lever Mild steel (see IS 2062).
A-3.1.8 Gears Cast iron (see IS 210).
A-3.1.9 Gear Box Cast iron (see IS 210) or mild steel (see IS 2062).
A-3.1.10 Gear Shaft Mild steel (see IS 2062).
A-3.2 Shape
The shape of feeding system with feed reversing mechanism used for chaff-cutter type threshers is shown in Fig. 4.
A-3.3 Dimensions
A-3.3.1 If chute is used, the dimensions shall be as given in A-1.3.1 and A-1.3.2 and the arrangement should be as shown in Fig. 5.
A-3.3.2 If conveyor is used, the length of centre to centre distance of conveyor rollers (see A in Fig. 4) shall be minimum of 1200 mm. Minimum of 450 mm of length of conveyor at feed inlet side shall be covered.
.png)
BEVEL PINION
REVEL GEAR
REVERSE GEAR
FEED REVERSING DEVICE
CLUTCH GEAR
UNIVERSAL JOINT SHAFT
CLUTCH LEVER
CONSTANT MESH GEAR
FORWARD GEAR
TENSION SPRING
FEED REVERSING ROLLER
CANVASS FEED CONVEYOR
UPPER FEED ROLLER
LOWER FEED ROLLER
THRESHING CYLINDER
CHOPPING BLADES
DRIVING ROLLER
.png)
All dimensions in millimetres
Minimum
A-3.4 Feed Reversing Device
A-3.4.1 Functioning of Device (see Fig. 6)
Pinion A receives the drive from the main shaft of the thresher by means of chain and sprocket. Pinion A meshes with bevel gear B which is mounted on a counter shaft. On the same shaft a spur pinion G is mounted which slices on splines with the help of a hand lever. When pinion G meshes with the gear F on the lower feed shaft, the lower feed roller revolves in clockwise direction and the upper feed roller in anti-clockwise direction. This is the feed-in position.
A-3.4.1.1 When pinion G is meshed with gear C , the direction of rotation of the upper and lower rollers is reversed. In other words, the upper roller rotates in clockwise and the lower roller in anticlockwise direction, This is the reversed or feedback position and the material being fed moves out instead of moving into the threshing chamber.
A-3.4.1.2 The third position is when pinion G does not mesh either with gear F or C . This is the neutral position. The lever to slide pinion G can be actuated by hand or foot or shoulder.
.png)
| UPPER SHAFT |
A |
| COUNTER SHAFT |
B |
| DRIVE SHAFT |
C |
| LOWER SHAFT |
D |
| FORWARD SPEED |
E |
| REVERSE SPEED |
F |
| G |
A-3.4.1.3 The details of gears in this system shall be as given in Table 7.
TABLE 7
| Sl. No. |
Type of Gear/Pinion |
Designation |
Shaft on which mounted |
| (1) |
(2) |
(3) |
(4) |
| (i) |
Bevel gear |
A |
Splined shaft on main shaft |
| (ii) |
do |
B |
Counter shaft |
| (iii) |
Spur pinion |
C |
Counter shaft |
| (iv) |
Spur gear |
D |
Upper feed roller shaft |
| (v) |
do |
E |
do |
| (vi) |
do |
F |
Lower feed roller shaft |
| (vii) |
Bevel gear |
G |
Splined shaft on main shaft |
A-3.4.2 Functioning of Device (see Fig. 7)
If the roller handle is put in backward direction, bevel gear A which is mounted on splined shaft receives the drive from main shaft. The main shaft moving in anti-clockwise direction will rotate bevel gear A also in anti-clockwise direction. Bevel gear A meshes with bevel gear B which is mounted on a counter shaft, having at other end a pinion C . This will rotate bevel gear B counter shaft and pinion C in clockwise direction. Gear D meshes with pinion C and rotates in anti-clockwise direction. Gears D and E are on the same shaft, hence the direction of rotation of E would also be the same. Gears E and F mounted on upper and lower feed roller shafts respectively, mesh with each other: therefore the gear F rotates in clockwise direction. The direction of rotation of upper and lower feed rollers would be the same as that of gears F and F . This is the feed-in position.
A-3.4.2.1 If the roller handle is put in forward direction, bevel gear G , which is mounted on splined shaft, receives the drive from main shaft and moves in anti-clockwise direction. Bevel gear G meshes with bevel gear B . The bevel gear B , counter shaft and pinion C will rotate in anti-clockwise direction. This will ultimately lead to the rotation of lower feed roller in anti-clockwise direction. This is the reversed or feedback position and the material being fed moves out instead of moving into the threshing chamber.
A-3.4.2.2 In case the roller handle is kept in central position, feed-reversing mechanism will not operate. This is the neutral position.
A-3.5 Where conveyor feeding system is not provided in a chaff-cutter type thresher nor the chute is covered from top, a second set (secondary set) of feed rollers shall he placed at 200 to 300 mm axial distance to assist feeding of the crop to the primary set of feed rollers. The top roller (which is idle, that is, not driven positively) of the second set of the rollers shall have moderate axial grooves and a spring control to let the hand he withdrawn without injury before the hand gets to the second set of rollers.
A-3.6 Other Requirements
A-3.6.1 All the sharp edges shall be avoided.
A-3.6.2 Castings shall be smooth and shall not be porous.
A-3.6.3 The shifting of gear shall be easy and smooth.
.png)
.png)
| ROLLER SHAFT |
MAIN SHAFT |
| HANDLE |
COUNTER SHAFT |
| ROLLER SHAFT |
ROLLER HANDLE |
| LEVER |
UPPER FEED ROLLER |
| SPLINED SHAFT |
UPPER ROLLER SHAFT |
| REVERSE MOTION |
LOWER ROLLER SHAFT |
| FORWARD MOTION |
LOWER FEED ROLLER |
| DIRECTION OF MAIN SHAFT |
A-4 CONVEYOR FEEDING SYSTEM
A-4.0 Conveyor system is generally used with spike tooth or rasp-bar type threshers of power ratings of 5.5 kW or higher.
A-4.1 Material
A-4.1.1 Conveyor Rubber [see IS 1891 (Part I)].
A-4.1.2 Fenders Mild steel (see IS 2062).
A-4.1.3 Conveyor Roller Cast iron (see IS 210).
A-4.1.4 Cover Mild steel sheet (see IS 2062) having thickness of 1.6 mm, Min.
A-4.2 Shape
The shape of a conveyor system is given in Fig. 8.
A-4.3 Dimensions
A-4.3.1 The centre to centre distance of conveyor roller (see A in Fig. 8), shall be minimum of 1000 mm.
A-4.3.2 The length of covered portion of conveyor shall be minimum of 600 mm.
A-4.4 Other Requirements
A-4.4.1 All the sharp edges shall be avoided.
A-4.4.2 Castings shall be smooth and shall not be porous.
.png)
| FENDER |
COVER |
| CONVEYOR ROLLER |
RASP BAR |
| CONVEYOR |
CYLINDER |
ANNEXURE A
[Clause 7.3(b)]
A-1 CONSTRUCTION
It comprises a feed pressing roller, two corrugated feed rollers and conveyor with power transmission system. For this type of chaff cutters with power ratings of 15 kW or more, a feed reversing mechanism is recommended. It comprises of a gear box, a clutch lever and two joining shafts with universal joints (see Fig. 9). In some chaff cutters fast and loose pulleys to cut-off the drive to the upper and lower feed rollers are also used. In the feeding system with feed reversing mechanism, if the hand of an operator gets entrapped, the clutch lever is pressed by his hand or shoulder and the drive to feed roller is cut-off in the neutral position or the direction of the upper and lower feed rollers is reversed.
A-2 MATERIAL
A-2. Conveyor Canvass or rubber [see IS 1891] (Part 1)] or steel slats (see IS 2062).
A-2.2 Driving Roller Cast iron (see IS 210).
A-2.3 Pressing Roller Cast iron (see IS 210).
A-2.4 Feed Rollers Cast iron (see IS 210).
A-2.5 Tension Spring Spring steel [see IS 4454 (Part 1)]
A-2.6 Clutch Lever Mild steel (see IS 2062).
A-2.7 Gears Cast iron (see IS 210).
A-2.8 Gear Box Cast iron (see IS 210) or mild steel (see IS 2062)
A-2.9 Gear shaft Mild steel (see IS 2062)
A-2.10 Stand Mild steel (see IS 2062)
A-3 DIMENSIONS
The length of center-to-center distance of conveyor rollers (see A in Fig 9) shall be minimum of 1200mm. Minimum of 450 mm of length of conveyor at feed inlet side shall be covered.
A-4 FEED REVERSING DEVICE
A-4.1 Functioning of Device (see Fig. 10)
Pinion A receives the drive from the main shaft of the chaff cutter by means of chain and sprocket. Pinion A meshes with bevel gear B which is mounted on a counter shaft. On the same shaft a spur pinion G is mounted which slides on splines with the help of a hand lever. When pinion G meshes with the gear F on the lower feed shaft the lower feed roller revolves in clockwise direction and the upper feed roller in anti-clockwise direction. This is the feed-in-position.
A-4.1.1 When pinion G is meshed with gear C the direction of rotation of the upper and lower rollers is reversed. In other words, the upper roller rotates in clockwise and the lower roller in anti-clockwise direction. This is the reversed or feedback position and the material being fed moves out instead of moving into the cutting zone chamber.
A-4.1.2 The third position is when pinion G does not mesh either with gear F or C . This is the neutral position. The lever to slide pinion G can be actuated by hand or foot or shoulder.
A-4.1.3 The details of gears in this system shall be as given in Table 2.
TABLE 2
| Sl. No. |
Type of Gear/Pinion |
Designation |
Shaft on which mounted |
| (1) |
(2) |
(3) |
(4) |
| (i) (ii) (iii) (iv) (v) (vi) (vii) |
Bevel gear Bevel gear Spur pinion Spur gear Spur gear Spur gear Bevel gear |
A B C D E F G |
Splined shaft on main shaft Counter shaft Counter shaft Upper feed roller shaft Upper feed roller shaft Lower feed roller shaft Splined shaft on main shaft |
A-4.2 Functioning of Device (see Fig. 11)
A-4.2.1 If the roller handle is put in backward direction, bevel gear A which is mounted on splined shaft receives the drive from main shaft. The main shaft moving in anti-clockwise direction will rotate bevel gear A also in anti-clockwise direction. Bevel gear A meshes with bevel gear B which is mounted on a counter shaft, having at other end a pinion C . This will rotate bevel gear B counter shaft and pinion C in clockwise direction. Gear D meshes with pinion C and rotates in anti-clockwise direction. Gears D and E are on the same shaft, hence the direction or rotation of E would also be the same. Gears E and F mounted on upper and lower feed roller shafts, respectively, mesh with each other; therefore, the gear F rotates in clockwise direction. The direction of rotation of upper and lower feed rollers would be the same as that of gears E and F . This is the feed-in position.
A-4.2.2 If the roller handle is put in forward direction, bevel gear G , which is mounted on splined shaft, receives the drive from main shaft and moves in anti-clockwise direction. Bevel gear G meshes with bevel gear B . The bevel gear B counter shaft and pinion C will rotate in anti-clockwise direction. This will ultimately lead to the rotation of lower feed roller in anti-clockwise direction. This is the reversed or feedback position and the material being fed moves out instead of moving into the threshing chamber.
A-4.2.3 In case the roller handle is kept in central position, feed-reversing mechanism will not operate. This is the neutral position.
.png)
| BEVEL PINION |
TENSION SPRING |
| BEVEL GEAR |
FEED REVERSING ROLLER |
| REVERSE GEAR |
CANVASS FEED CONVEYOR |
| FEED REVERSING DEVICE |
UPPER FEED ROLLER |
| CLUTCH GEAR |
LOWER FEED ROLLER |
| UNIVERSAL JOINT SHAFT |
THRESHING CYLINDER |
| CLUTCH LEVER |
CHOPPING BLADES |
| CONSTANT MESH GEAR |
DRIVING ROLLER |
| FORWARD GEAR |
.png)
| UPPER SHAFT |
A |
| COUNTER SHAFT |
B |
| DRIVE SHAFT |
C |
| LOWER SHAFT |
D |
| FORWARD SPEED |
E |
| REVERSE SPEED |
F |
| G |
.png)
.png)
| ROLLER SHAFT |
MAIN SHAFT |
| HANDLE |
COUNTER SHAFT |
| ROLLER SHAFT |
ROLLER HANDLE |
| LEVER |
UPPER FEED ROLLER |
| SPLINED SHAFT |
UPPER ROLLER SHAFT |
| REVERSE MOTION |
LOWER ROLLER SHAFT |
| FORWARD MOTION |
LOWER FEED ROLLER |
| DIRECTION OF MAIN SHAFT |
1. Vide G.S.R. 506(E), dt. 24-7-2007, published in the Gazette of India, Extra., Part II, Section 3(i), dated 25th July, 2007, pp. 12-37, No. 337.
